Cloud native journey for a luxury fashion house

The client is a prestigious Italian luxury fashion house, a world-class reference in the production of the highest quality garments and fabrics from the rarest and most precious raw materials. With a decades-long history of artisan excellence, the company is now part of one of the leading international luxury groups, while maintaining its identity and tradition intact.

The client operates several production sites in Italy and a network of single-brand shops worldwide, producing millions of meters of fabric each year.

The tension towards innovation is also evident on the digital and infrastructural front: the internal IT division is fully aware of how adopting a Cloud Native approach is now essential.

The customer needed to understand whether the migration to the Cloud, and specifically to Kubernetes, of one of their legacy applications was feasible, sustainable in terms of resources and concretely effective. In detail, the objectives were

• Deepen knowledge in the Cloud Native domain with a particular focus on Kubernetes.
• Evaluate how to transfer from an OnPrem architecture to Public Cloud.
• Prepare the migration of some development projects to the Cloud: application for Retail on Line 'ROL' management (Java-based); static sites (Apache-based).
• Support the improvement of development processes.
• Introduce best practices, speed and quality of release.

At the time of the maturity level assessment according to the Cloud Native Maturity Model, a number of infrastructural and organisational difficulties, such as the lack of documentation or the retention of manual intervention on a number of tasks that could already be automated, made the challenge even more interesting.

The evolutionary stages towards the Cloud Native approach cover several different areas, both technical and organisational:

• Culture
• Solution design
• Team/Competences
• Process
• Architecture
• Maintenance
• Delivery
• Provisioning
• Infrastructure

In the context of the suggested Cloud Native Journey, a complete platform for source code management and Continuous Integration / Continuous Delivery pipelines based on Gitlab CE was implemented on Azure.

By means of a fully IaC (Infrastructure as Code) approach, via ‘Terraform’ and appropriate CI pipelines, the following were deployed:

• Kubernetes AKS Cluster
• Gitlab Server Community Edition
• Gitlab runner Kubernetes based (module)

Specifically, the client’s Cloud Native Journey included the following steps:

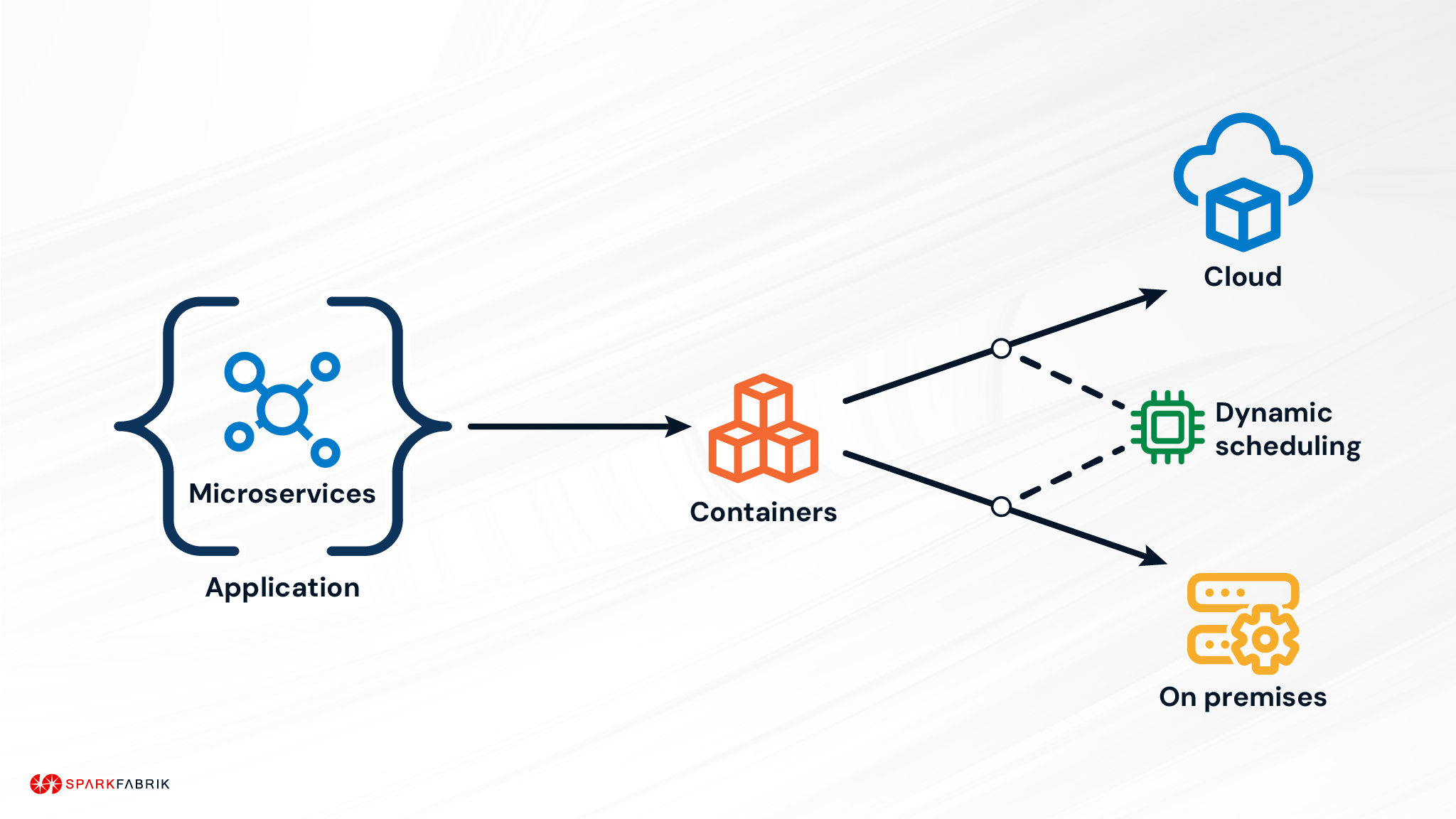

• Deployment using a container architecture, to standardise local development environments and release processes.
• Implementation of automation for building the infrastructure elements necessary for the setup of the development and production environments using Terraform and IaC.
• Installation of Gitlab as a versioning system as well as a tool for creating CI/CD pipelines.
• Use of CI also to generate deployment-ready artefacts.
• Implementation of infrastructure monitoring system with corresponding alerting system.

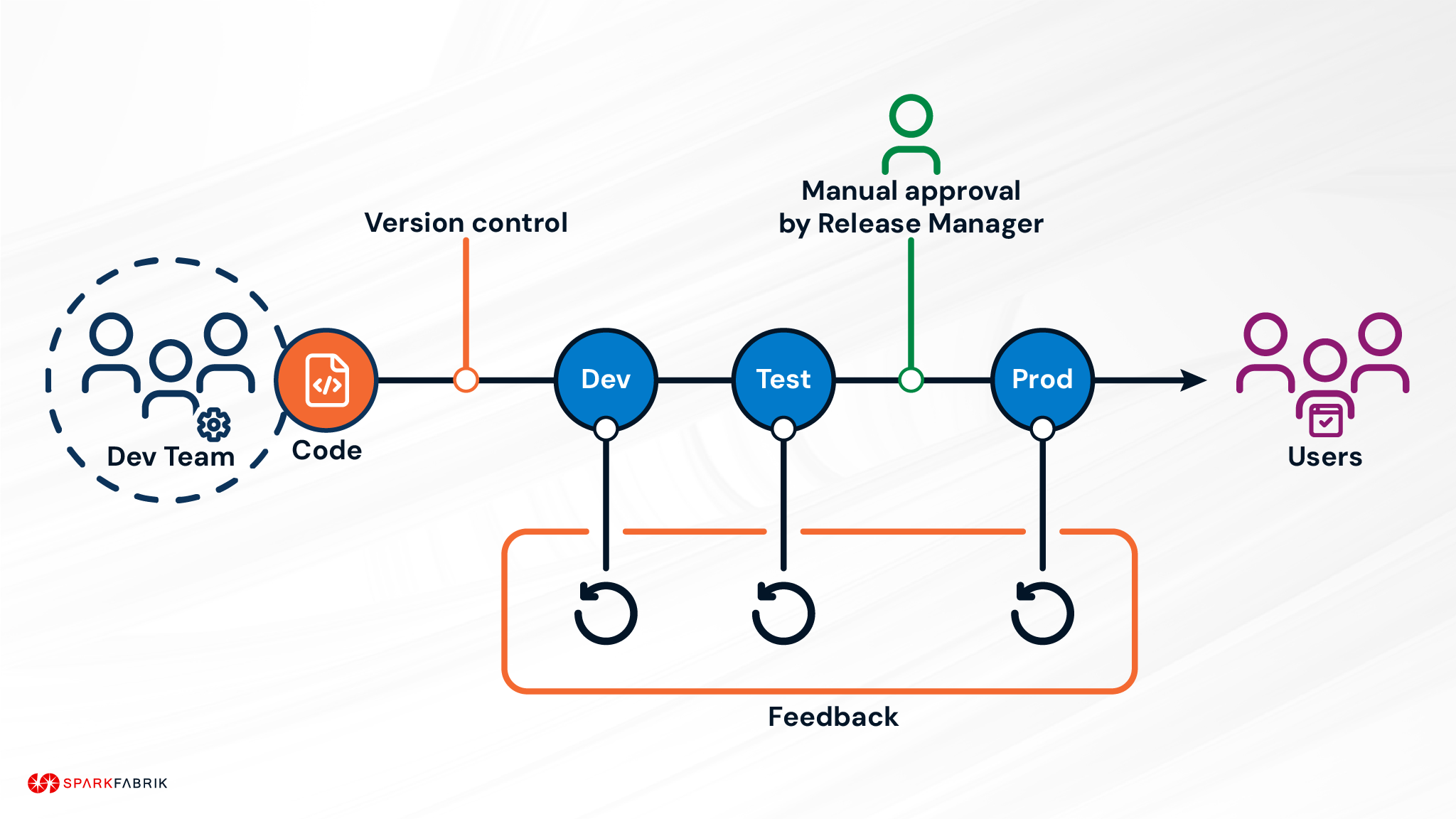

• Application of CD principles to increase the ability to release frequently and reliably.
• Keeping the infrastructure up-to-date through commit and merge requests on the IaC repositories.

The PoC confirmed the feasibility of what the client had set out and expected to achieve, and also proved to be easily replicable. After the project, one of the key deliverables expected by the client was an analysis report on the results obtained and the state-of-the-art achieved.

What were, in detail, the main results achieved?

• A CI/CD and code versioning platform (GitLab) that can be easily maintained and replicated through an Infrastructure as Code project.
• Increased knowledge and awareness of what needs to be done to transform a legacy application into a Cloud Native application, following the principles of the methodology known as 'The twelve-factor app'.
• Two Kubernetes clusters, one for development environments and one for production environments, could be deployed using GitLab's CICD pipelines.
• A series of POCs consisting of some Gitlab projects in which a simple static website written in HTML and PHP versioned in git was containerised and deployed on different Kubernetes clusters (development and production) using GitLab's CI/CD pipeline.

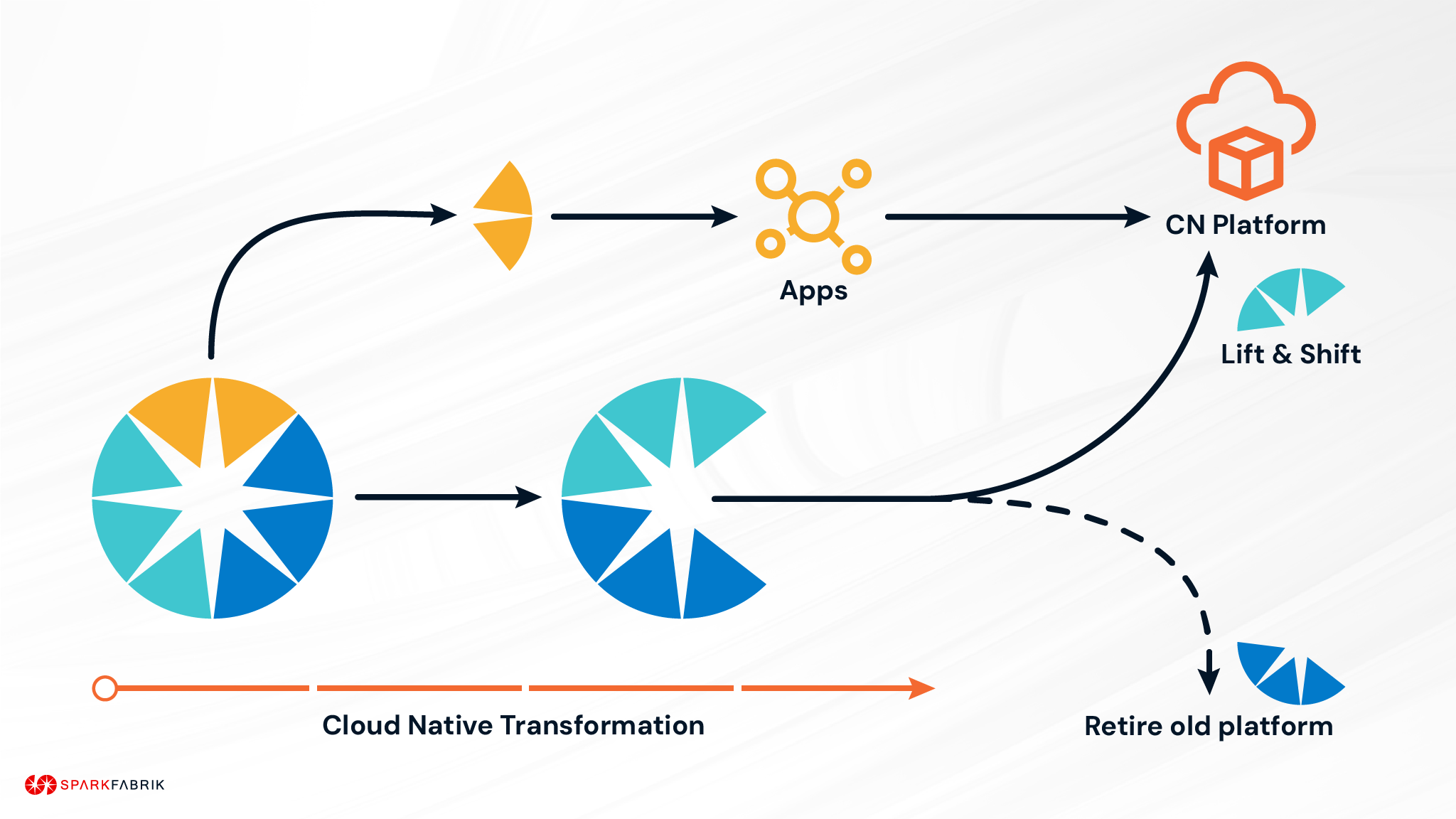

• The realisation that migrating a legacy application to Kubernetes is not always possible without substantial refactoring; the knowledge acquired during the course provided the necessary tools to objectively understand the minimum requirements that an application must meet in order to function in a dynamic environment such as Kubernetes. On the other hand, it emerged that there are also other ways of approaching migration to the cloud in a more gradual manner, even if it is by starting with a simple lift and shift and taking advantage, for example, of the Database as a service services that the cloud vendor makes available.
